Dimension Detecting
Wireless Switch for CNC Turret Lathes [RC-P10DB]
Prevents workpiece demensional errors on CNC turret lathes.
Able to detect the bar length with 1µm repeatability before machining by installing directly to a turret tool holder, where manipulating wiring is difficult.
Eliminates full inspection which takes lots of man-hours .

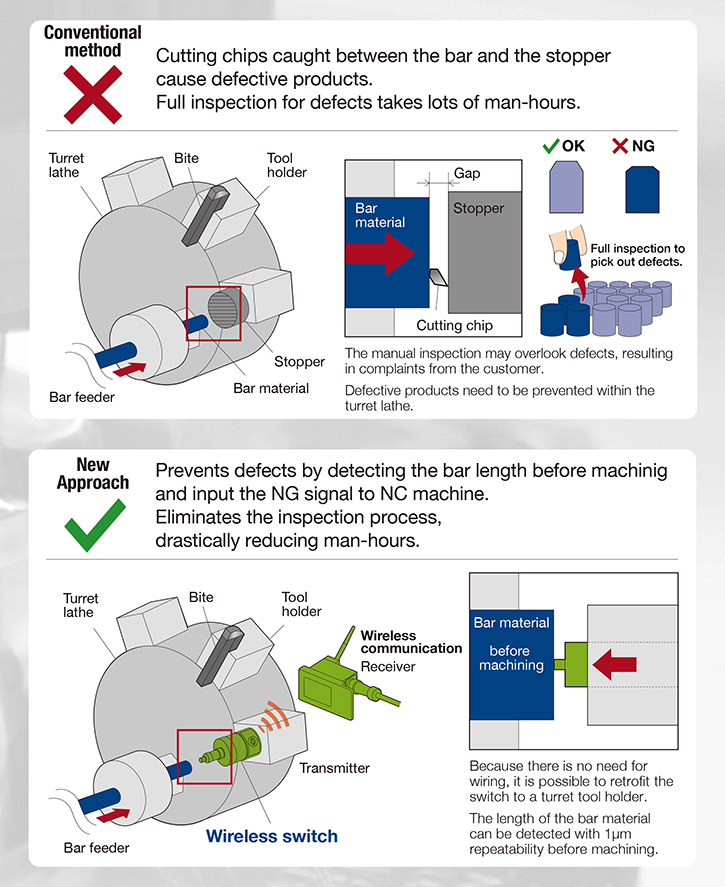

Reasons to choose Metrol’s Wireless Switch
Detects the dimension of the bar material with 1µm repeatability.
The detected bar length is fed back to NC machines before machining.
Full inspection after machining can be eliminated by preventing defective products.
This results in significant man-hour reduction.
2.4GHz New radio transimission system resistant to noise.
Wireless switch can be retrofitted to turret lathes, where manipulating wiring is difficult.
Selects the optimal channel automatically by searching the radio wave frequency band at all times.
Reliable communication can be realized.
Detects defects in the machining process, reducing the inspection process.
Product list
| Product name | Download | ||
|---|---|---|---|
| RC-P10DB | Catalog |
Manual |
|
Specification
| Repeatability | １μｍ |
|---|---|
| Sigal transmission format | FSK（DSSS） |
| No. of channels | 37 |
| Wireless frequency | 2400MHz – 2480MHz |
| Power ON/OFF signal | M code |
| Signal transmission range | Max. 15m |
| Protective structure | IP67 |
