Automatic Detection of Hole Machining Anomalies! What Is the Revolutionary Customization of the CITIZEN CNC Automatic Lathe CincomL12?

In this blog, we will introduce METROL's high-precision MT touch switch [P10DB-A], which can be optionally mounted on CITIZEN CNC automatic lathe CincomL12.

Automatically detects drilling abnormalities

  • Automatically detects post-machining drilling abnormalities and, in the case of a defect, stops operation automatically. Prevents mass production of defective products.
  • Reduces 100% manual inspection process.
  • Minimizes defective products and thus minimizes costs (materials, machining time).

Automatically detects drilling defects in 2 steps

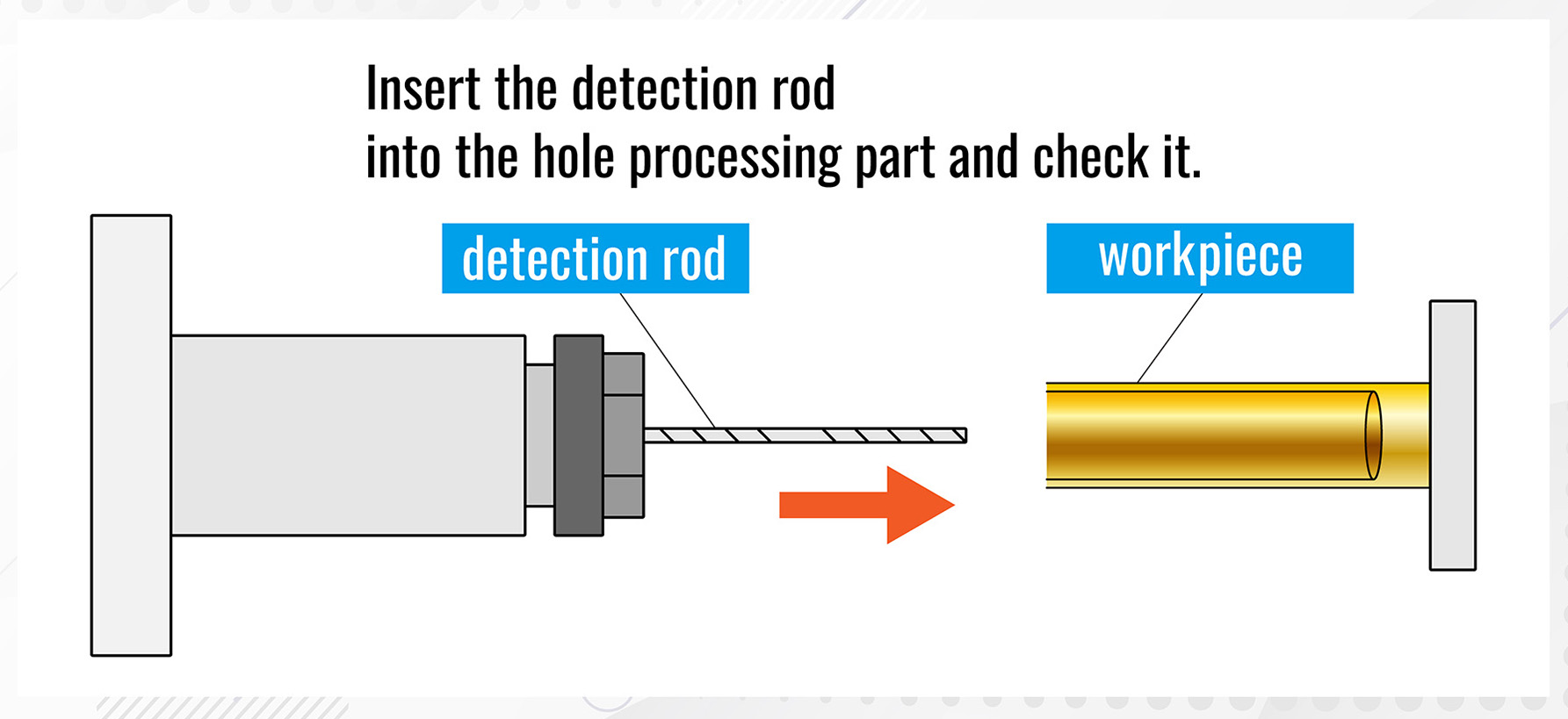

STEP.1 Checks whether drilling is taking place normally

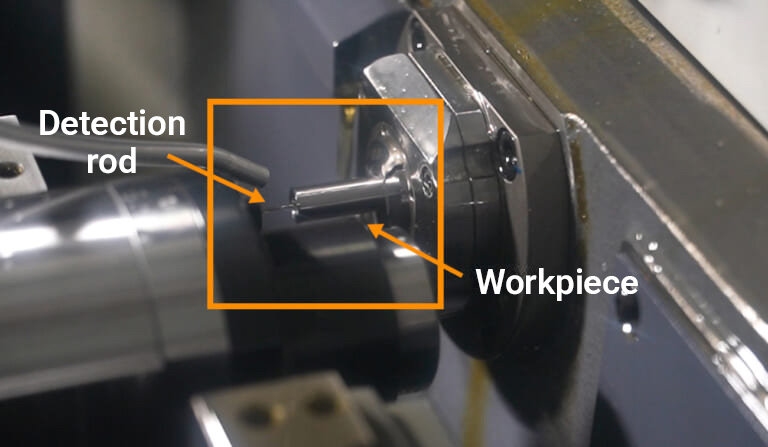

Inserts detection rod into drilled part to confirm

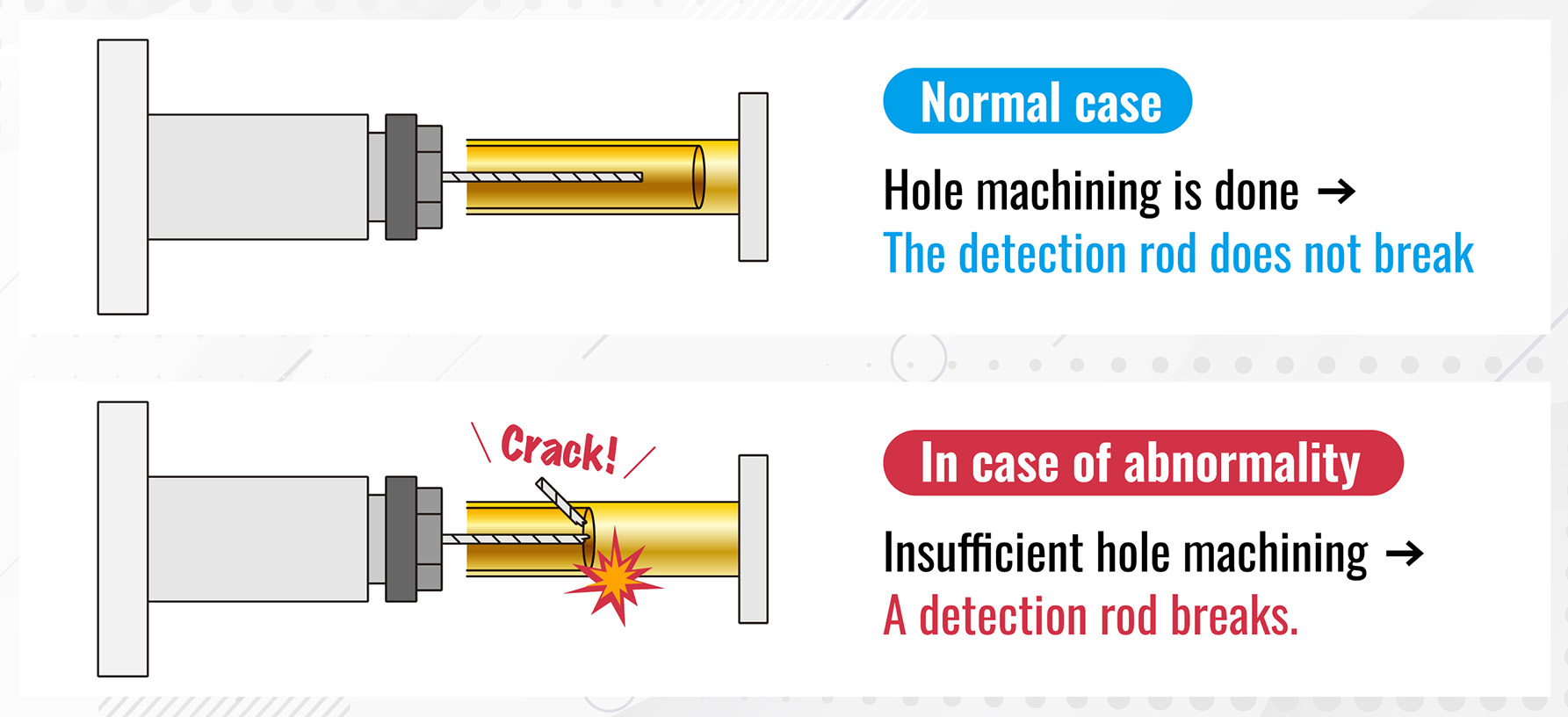

[Normal] Complete drilling ▶︎ Detection rod does not break
[Abnormal] Insufficient drilling ▶︎ Detection rod breaks

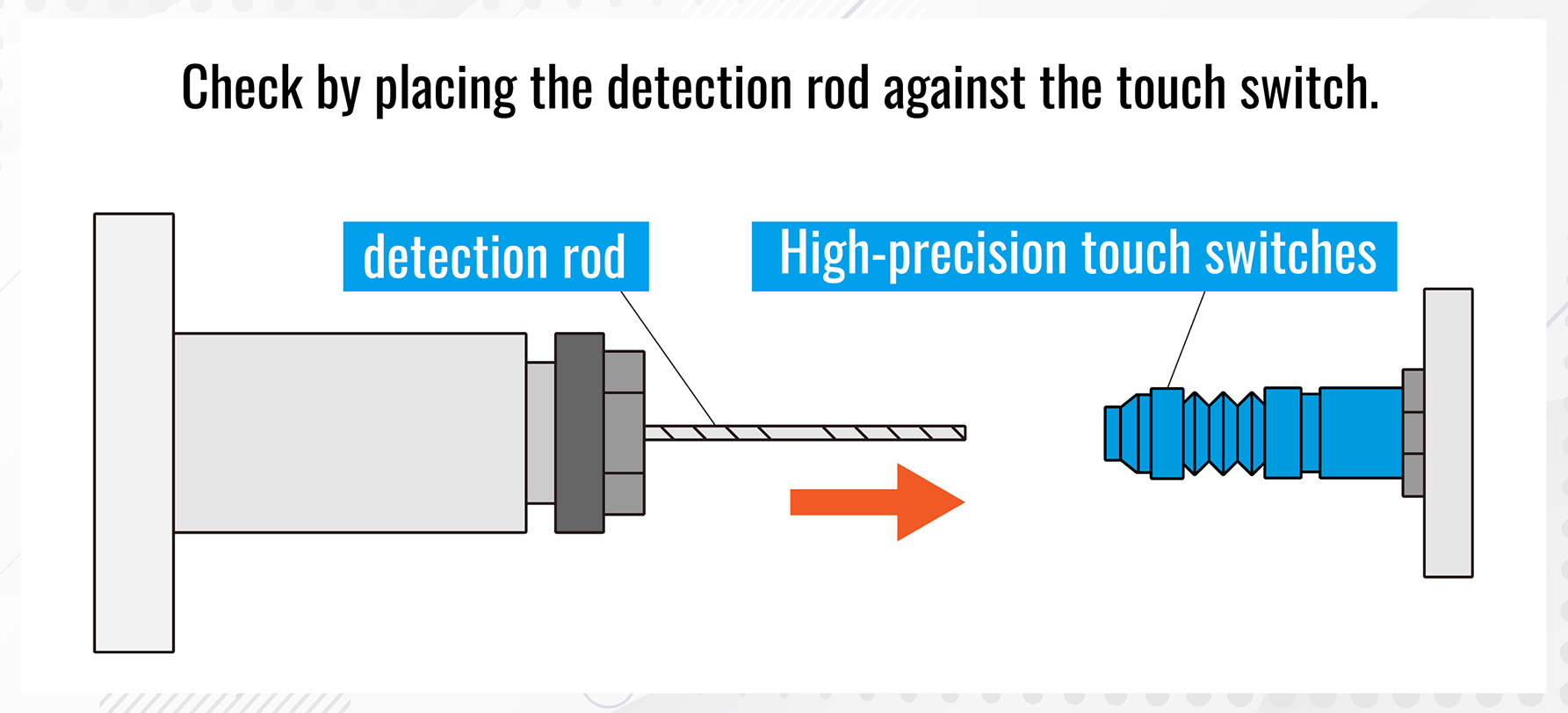

STEP.2 High-precision Touch Switch confirms detection rod status

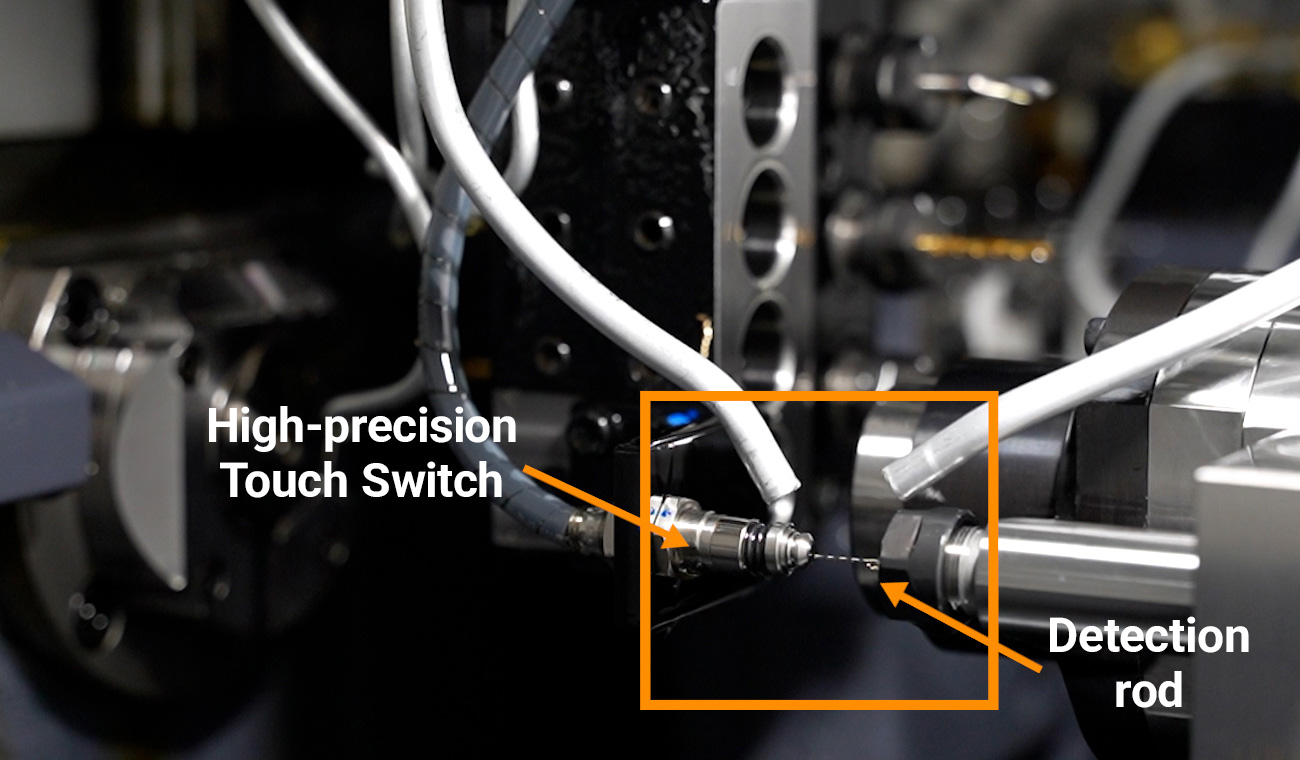

Detection rod is placed against touch switch for confirmation

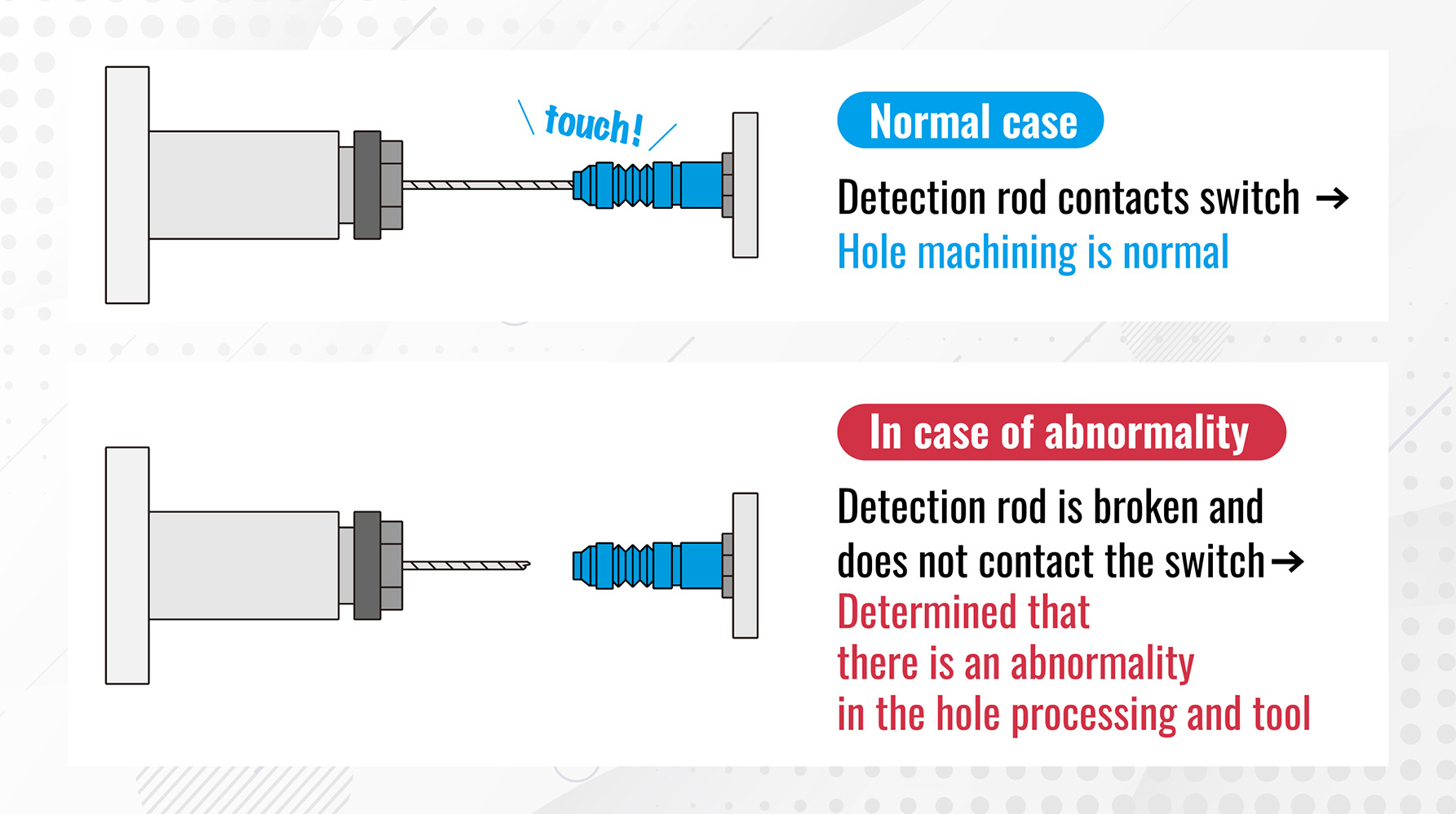

[Normal] Detection rod contacts touch switch
▶︎Machining continues with no problem

[Abnormal] Detection rod does not contact touch switch
▶︎ Machining stops automatically! Machining defects prevented in advance

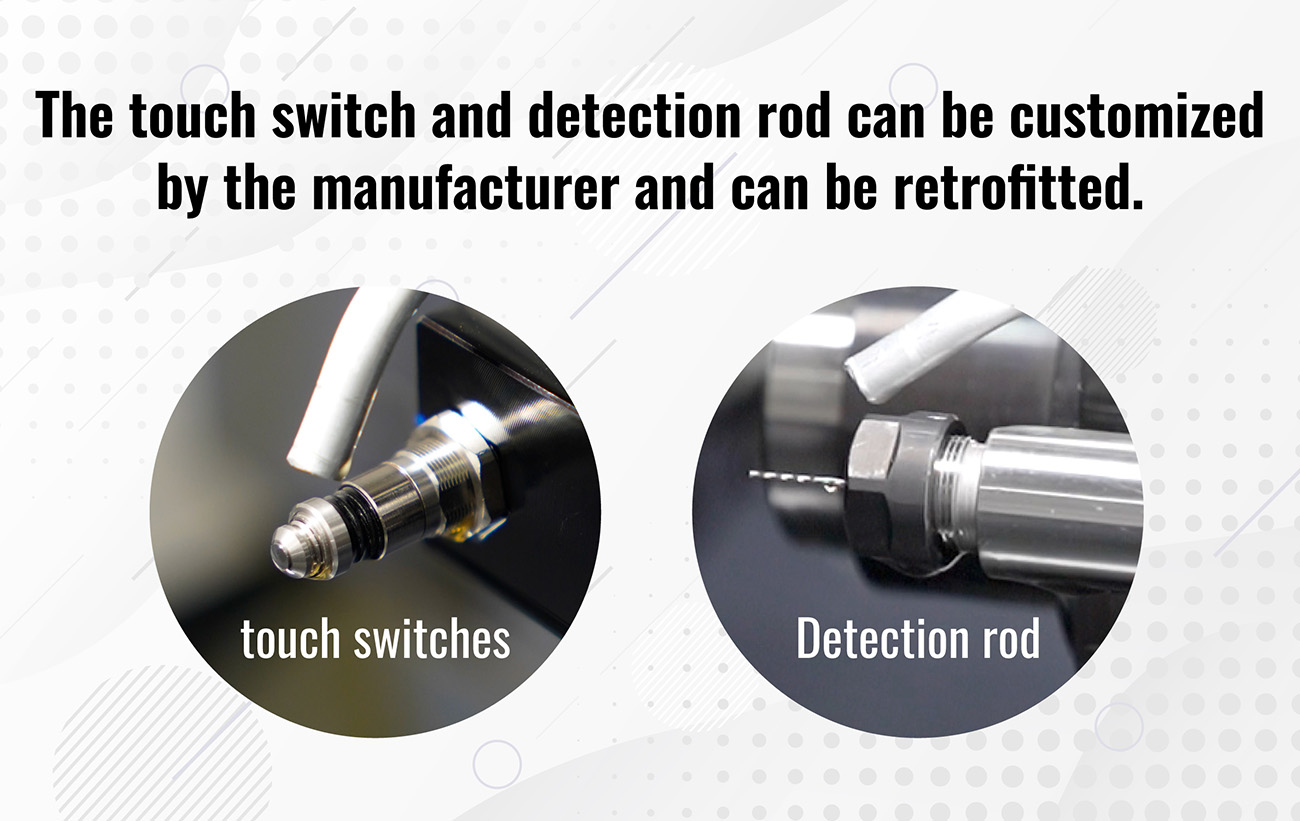

Touch switches and detection rods can be customized by the manufacturer (retrofitting is possible).

[Reference video] Automatic Detection of Hole Machining Abnormality

CITIZEN Cincom L12 equipped with a high-precision touch switch can automatically detect abnormalities in hole drilling and prevent machining defects.

[Automatic Lathe Users Must See! ] Automatic detection of abnormalities in hole machining

Products featured in this article

P10DLB-01-17

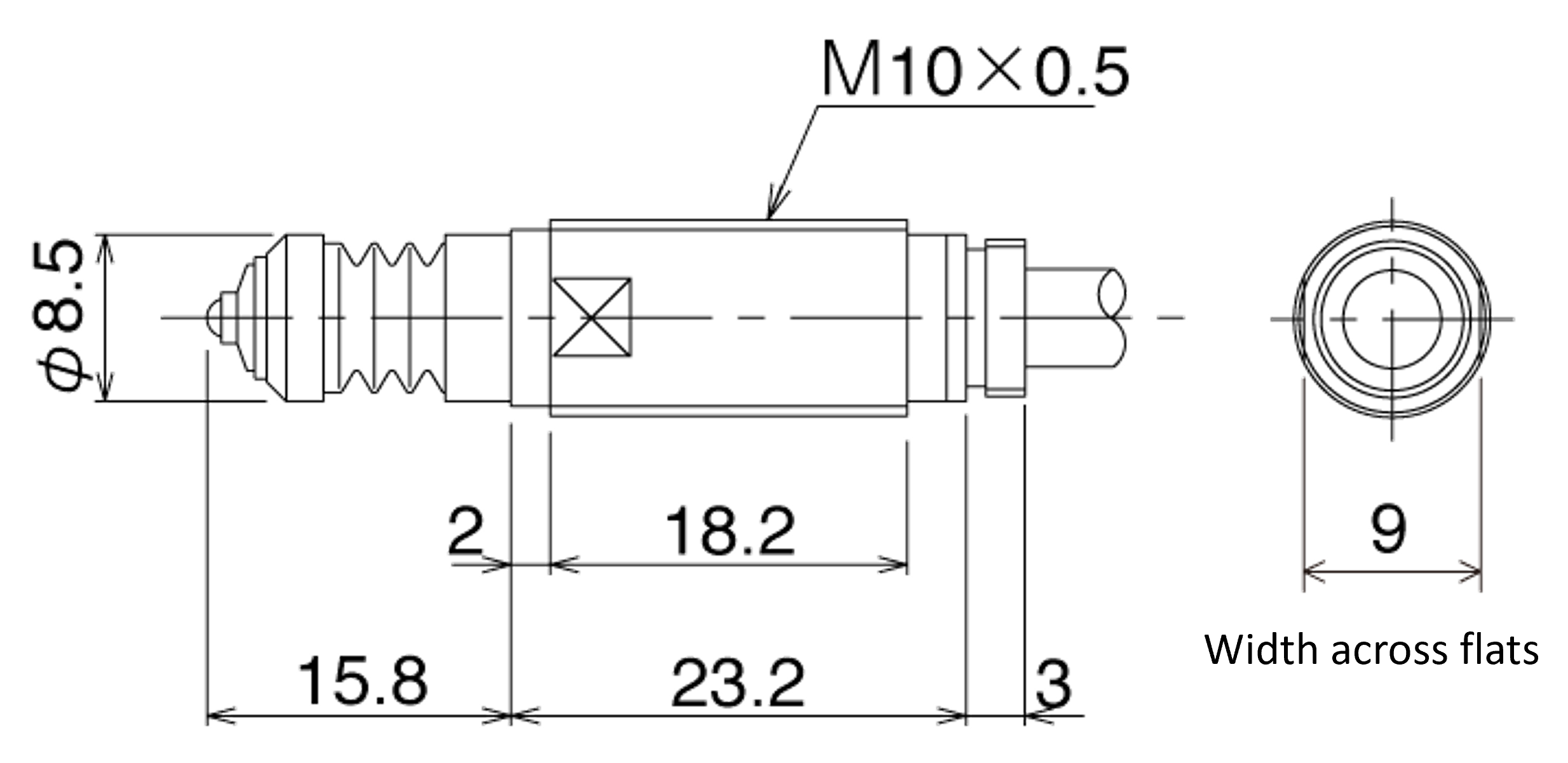

P10DB-A Outer dimension
Standard ModelP10DB-A
Contact structureDry contact
Output modeB:NC
Protective StructureIP67
With/Without LEDWithout LED
Repeatability0.5μm
Movement Differential (mm)0
Overall length 42mm
Overall diameterM10×0.5
Tip shapeR shape
Shape of contacting partshaft φ8.5
end S φ2
Stroke3mm
Distance to operationNot required
Contact methodstraight touch
Contact force1N
PerformanceWaterproof/dustproof (IP67)
Case material SUS303
Contacting part material Tungsten carbide
Bearing typeMetal bearing
Cable typeCabtyre cable
Cable detailsLength 3m
Oil resistant 2-core ø5
Tensile strength 30N
Cable directionStraight
AWG30
Standard accessoryTwo fixing nuts
Contact lifetime3 million times
Operating temperature range0°C-80°C
(no freezing)
Temperature driftNo temperature drift due to self-heat generation
Vibration10-55Hz Total amplitude 1.5 for X, Y, Z each direction
Impact300m/s2 for X, Y, Z each direction
Contact ratingDC5V-DC24V Steady current: 10mA or less (rush current: 20mA or less). When using the switches with LED, limit the current below 10mA.

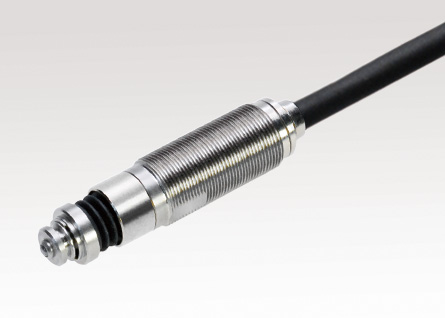

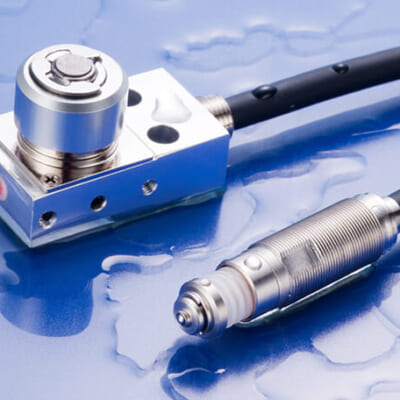

High Precision MT-Touch Switches

High Precision MT-Touch Switches

0.5 μm repeatability without amplifier
IP67, highly resistant to adverse environments

Top-of-the-line switch model for accuracy and durability
Performs precision positioning in adverse environments with splashing water, oil, coolant, and chips.

Available for immediate purchase in MISUMI

Available for immediate purchase in MISUMI

A partial lineup of high-precision MT touch switches is available immediately from MISUMI.
MISUMI
Please feel free to contact us for other options and customization requests.

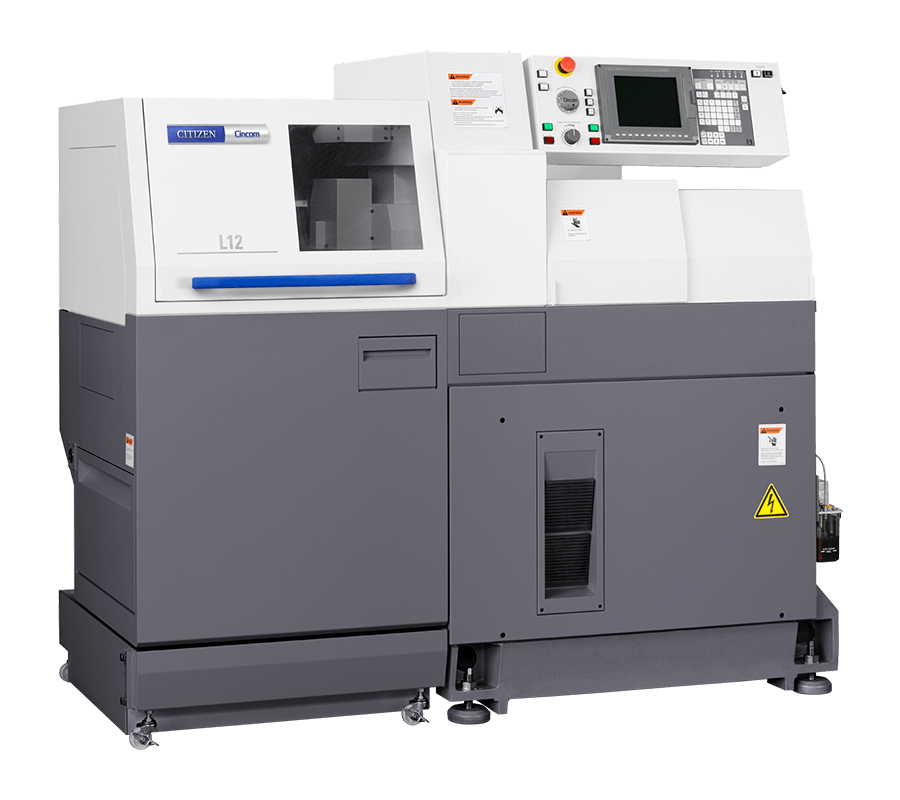

CITIZEN MACHINERY Machining center

Sliding Headstock Type Automatic CNC Lathe
Cincom L12X

Citizen's newest development, the L12X with Y2 axis for even higher functionality
Y2 axis Type X to the back spindle strengthens back machining. This increases the degree of freedom for process allocation, and increases the maximum number of tools that can be installed to 38.

  • The wide variety of tooling layouts available, such as "adjustable angle end-face spindle" that allows for slanted hole drilling, enable you to perform various kinds of machining.
  • Additionally, adoption of a built-in motor for the back spindle drive enables a maximum speed of 12,000 min-1.
  • Citizen Machinery's patented swarf control technology, LFV. Three vibration mode (mode1, mode2, mode3) are currently available.
