[Case Study] Examples of Robot x Probe Applications Measurement of transparent workpieces ｜ Switching from non-contact sensors reduces costs and improves precision

Accurate measurement of distance and height for transparent workpieces such as glass and films is not always possible with optical displacement sensors, due to transmission and diffused reflection of light. This case study introduces a method which simultaneously improves machining accuracy and reduces costs through reliable detection of transparent workpieces with robots and our probes.
In this case study, we introduce a method that uses a robot in combination with our probe to reliably detect transparent workpieces, achieving both improved machining accuracy and reduced costs at the same time.

Table of Contents

Customer issues

Transparent workpieces such as glass, resin and plastic, used in automotive headlights and camera lenses among other applications, transmit light and thus suffer from measurement instability with non-contact sensors.

For example, laser sensors apply light and measure the rebound distance. However, as light rebounds poorly from transparent workpieces, measures like placing something black under the jig are required, and maintaining a consistent reflection angle is difficult.

In addition, non-contact sensors are susceptible to onsite disturbances such as fluctuations in light quantity and illuminance as well as smoke and dust, presenting a significant challenge in improving machining precision.

Furthermore, many customers expressed concerns that the introduction of scanners and image sensors, which can cost several million yen, was difficult due to equipment costs.

Challenges

Transparent workpieces cannot be measured accurately with non-contact sensors

Light transmission and diffused reflection render detection unstable

Onsite environmental factors such as light quantity, illuminance, smoke, and dust affect detection

Introduction costs are high

METROL’S Proposal

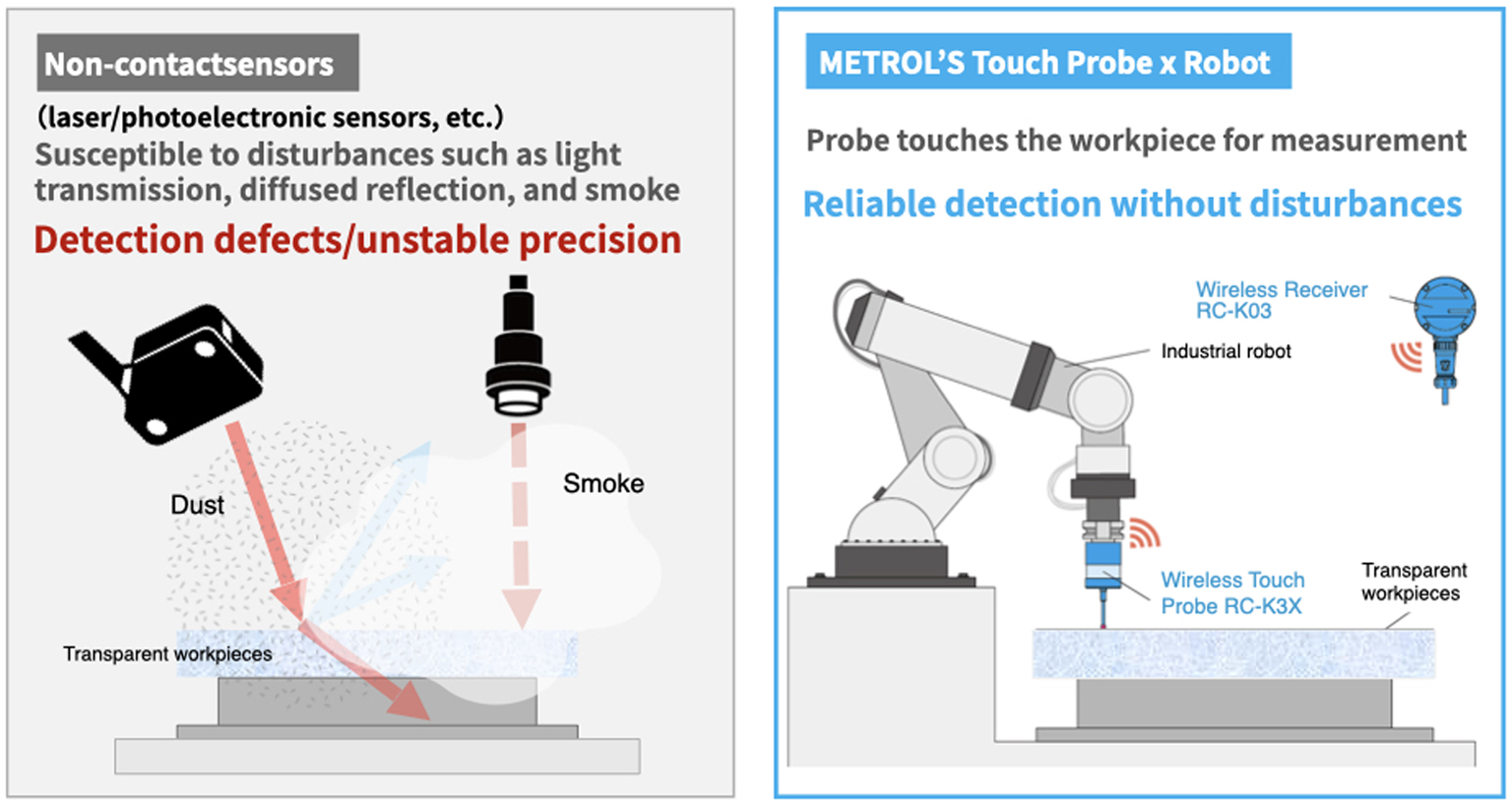

METROL proposed building a system featuring a contact-type touch probe mounted on a robot arm, enabling stable measurement of the positions and dimensions of transparent workpieces. The probe is contact type and thus insusceptible to disturbances such as fluctuations in illuminance, dust, or smoke, enabling highly reproducible measurements even on transparent workpieces.

In addition, customers highly valued the significant reduction in introduction costs compared to laser sensors costing several million yen.
By combining trajectory accuracy of the robot and 1µm repeatability of the touch probe, automation of the previously difficult high-precision positioning of transparent workpieces has been made possible at low cost.

Laser sensors (non-contact)	Transparent workpiece measurement	Touch Probe (Contact Type) x Robot
Unstable due to light transmission/ diffused reflection	Measurement accuracy	Contact type enables stability/high reproducibility Transparent/glossy materials supported
Susceptible to illuminance, smoke, and dust	Disturbances	No disturbances
Expensive	Cost	Inexpensive
Manual labor and re-measurement required	Workload	Fully automated with robots

METROL offers both wired and wireless probes; the use of the wireless type, which does not require wiring, enables easy mounting of the probe on a robot arm without concerns about hampering its movement.

安川電機ロボットアームに搭載されたメトロールの無線式タッチプローブRC-K3X — METROL Wireless Touch Probe RC-K3X mounted on a Yasukawa Electric robot arm

Effects of introduction

Measurement defects on transparent workpieces are significantly reduced, enabling labor savings and reduced working hours through automation of the measurement process.
Equipment costs can also be reduced by switching from expensive non-contact sensors, while the use of robots enables flexible handling of high-mix workpieces as well.

Replacing expensive Non-contact sensors helps reduce equipment costs, and leveraging robots also enables flexible handling of a wide variety of workpieces.

Results

Significantly reduced measurement defects on transparent workpieces

Labor savings and reduced working hours through automation of the measurement process

Reduced equipment costs through switching from laser sensors

Guarantee of high reproducibility quality in combination with robot operation

Comments from personnel in charge

“Demand for industrial robots and collaborative robots is steadily increasing as their use diversifies. Despite the users’ increasingly complex operating conditions and requirements, we can respond flexibly even to highly challenging concerns by combining robots and our sensors. The possibilities for the use of robots and sensors are infinite.”

Find the product introduced in this case study here

Find the robot introduced in this case study here (Yaskawa Electric Corporation）

The products featured in this case study

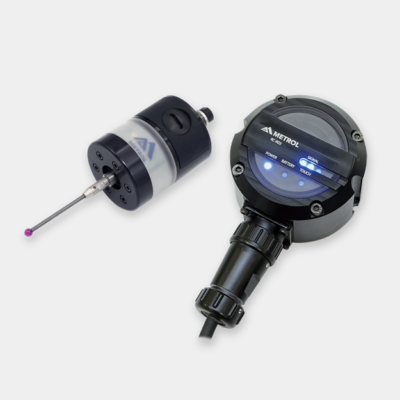

Wireless High-Precision Touch Probe[RC-K3X Series]
